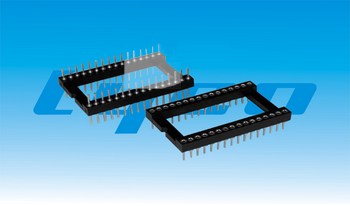

1.778mm圆孔IC座，双头针IC座
SPECIFICATIONS(技术参数):
Insulator(绝缘体): Black glass filled polyester PBT-GF30-FR
UL 94V-O
Sleeve/Contact(外壳/接触件)：Brass CuZn36Pb3(C36000)
Clip /4 finger(爪子)：Beryllium copper(C17200)
Accepted pinΦ（适配公针）：0.38 to 0.64mm
Forces(力测试)：（polished steel gauge Φ0.43mm）
--lnsertion(插入力) 2N typ
--Withdrawal(拔出力) 1N typ
Mechanical life(机械寿命)：min 100 cycles
Rated current(额定电流)：2A
Contact Resistance(接触电阻):Max 10mΩ
Dielectric strength(耐压值): min 1000V RMS
![1.778mm圆孔IC座，双头针IC座]( "1.778mm圆孔IC座，双头针IC座")
1.778 圆孔IC座 L=7.4.pdf
![1.778mm圆孔IC座，双头针IC座]( "1.778mm圆孔IC座，双头针IC座")
1.778双头针IC座.pdf
