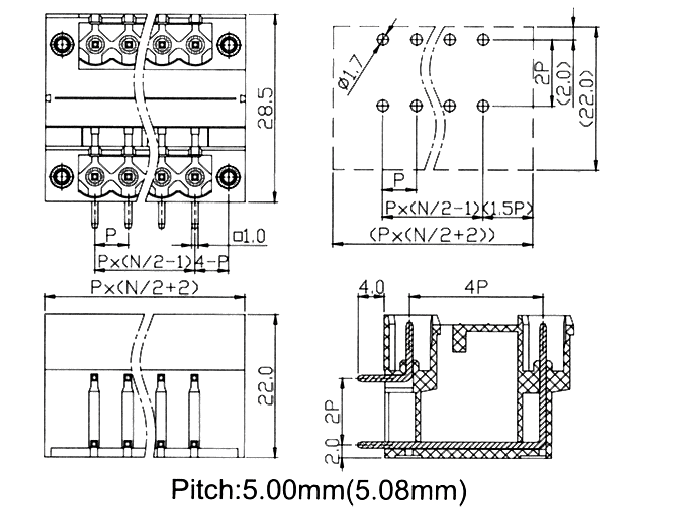

5.0mm Plug-In Terminal Block LYP500AMTE/LYP500BMTE
| Basic Parameters | |||
|---|---|---|---|
| Part Number | LYP500AMTE/LYP500BMTE | ||
| Type | Terminal Block | ||
| Pitch | 5.0mm/5.08mm | ||
| Rated Current | 15A | ||
| Rated voltage | 300V | ||
| Withstand Voltage | 1.6KV | ||
| Operating Temperature | -40°C~125°C | ||
| Contact Material | Brass, Tin Plated | ||
| Insulator Material | PA66 | ||
