2.54mm IDC Connector
| Basic Parameters | |||
|---|---|---|---|

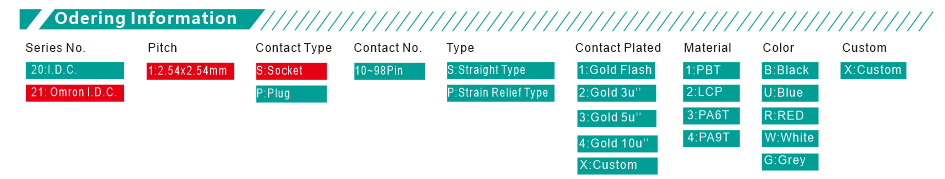

| Part Number | 20XSXXXXXXX | ||
| Type | IDC | ||
| Pitch | 1.27/2.0/2.54mm | ||
| Rated Current | 0.5A(1.27mm); 1.0A(2.0&2.54mm) | ||
| Withstand Voltage | 500V/AC/1min;1000V/AC/1min | ||
| Contact Resistance | ＜20.0mΩ | ||
| Insulation Resistance | ≥1000MΩ | ||
| Operating Temperature | -40°C~105°C | ||
| Contact Material | Copper Alloy | ||
| Insulator Material | PBT | ||
