1.27*1.27 Box Header DIP/Right Angle/SMT Type
| Basic Parameters | |||
|---|---|---|---|

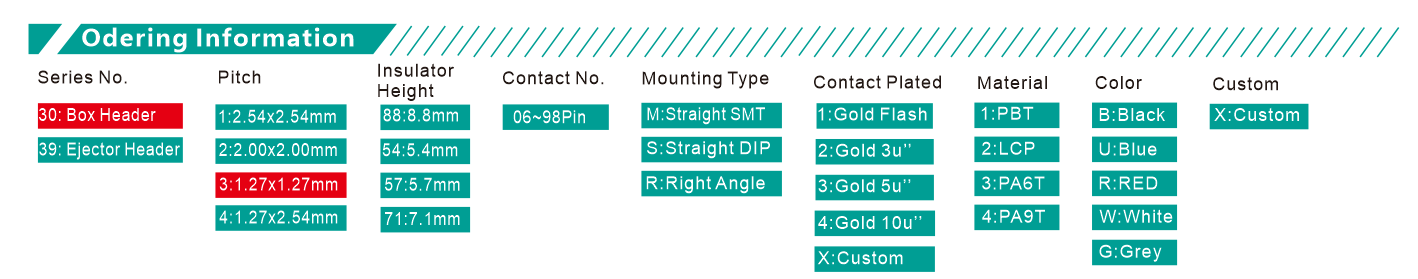

| Part Number | 303XXXXXXXXX | ||
| Type | Box Header | ||
| Pitch | 1.27mm | ||
| Rated Current | 1.0A | ||
| Withstand Voltage | 300V/AC/1min | ||
| Contact Resistance | ＜30.0mΩ | ||
| Insulation Resistance | ≥1000MΩ | ||
| Operating Temperature | -40°C~105°C | ||
| Contact Material | Copper Alloy | ||
| Insulator Material | PA6T | ||
