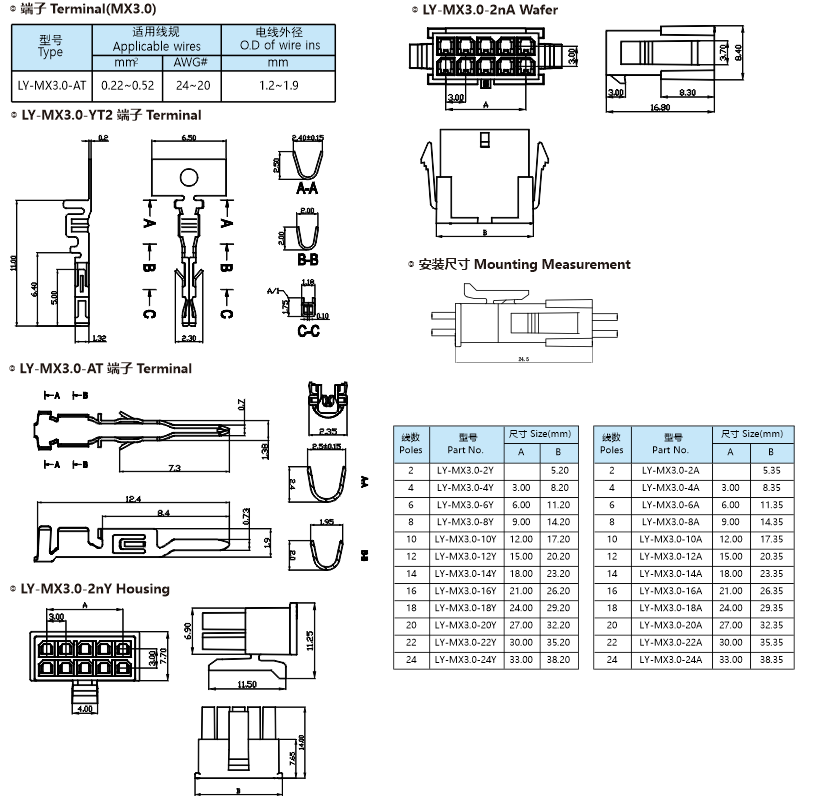

LY-MX3.0-2nA 3.0mm
| Basic Parameters | |||
|---|---|---|---|
| Part Number | LY-MX3.0-2nA | ||
| Type | Wire to Board Connector | ||
| Pitch | 3.0mm | ||
| Rated Current | 5.0A | ||
| Rated voltage | 250V AC/DC | ||
| Withstand Voltage | 1500V/AC/1min | ||
| Contact Resistance | ＜15.0mΩ | ||
| Insulation Resistance | ≥1000MΩ | ||
| Operating Temperature | -25°C~85°C | ||
| Contact Material | Phos.bronze Tin Plated | ||
| Insulator Material | PA66 | ||
